Product Details
Place of Origin: Xi'an City, Shaanxi Province, China
Brand Name: DH
Certification: CE
Model Number: A1350
Payment & Shipping Terms
Minimum Order Quantity: 1
Payment Terms: T/T, Western Union
Name: |
Offline Date Detection Equipment |
Model: |
A1350 |
The Main Function: |
Check The Production Date |
Adaptation: |
Suitable For Coding And Detecting Plastic Bags, Labels (paper), Cards And Other Sheet Objects |
Machine Body Size: |
2200*610/350*830+30mm (conveying Surface) |
Equipment Appearance Material: |
Stainless Steel Model/plastic Spray Model (optional) |
Size Of Separated Object: |
Length: 70-300mm Width: 80-350mm Degree: 0.2-2mm (adjustable) |
Paging Mode: |
Friction Type |
Paging Segment Speed: |
5-60m/min |
Name: |
Offline Date Detection Equipment |
Model: |
A1350 |
The Main Function: |
Check The Production Date |
Adaptation: |
Suitable For Coding And Detecting Plastic Bags, Labels (paper), Cards And Other Sheet Objects |
Machine Body Size: |
2200*610/350*830+30mm (conveying Surface) |
Equipment Appearance Material: |
Stainless Steel Model/plastic Spray Model (optional) |
Size Of Separated Object: |
Length: 70-300mm Width: 80-350mm Degree: 0.2-2mm (adjustable) |
Paging Mode: |
Friction Type |
Paging Segment Speed: |
5-60m/min |

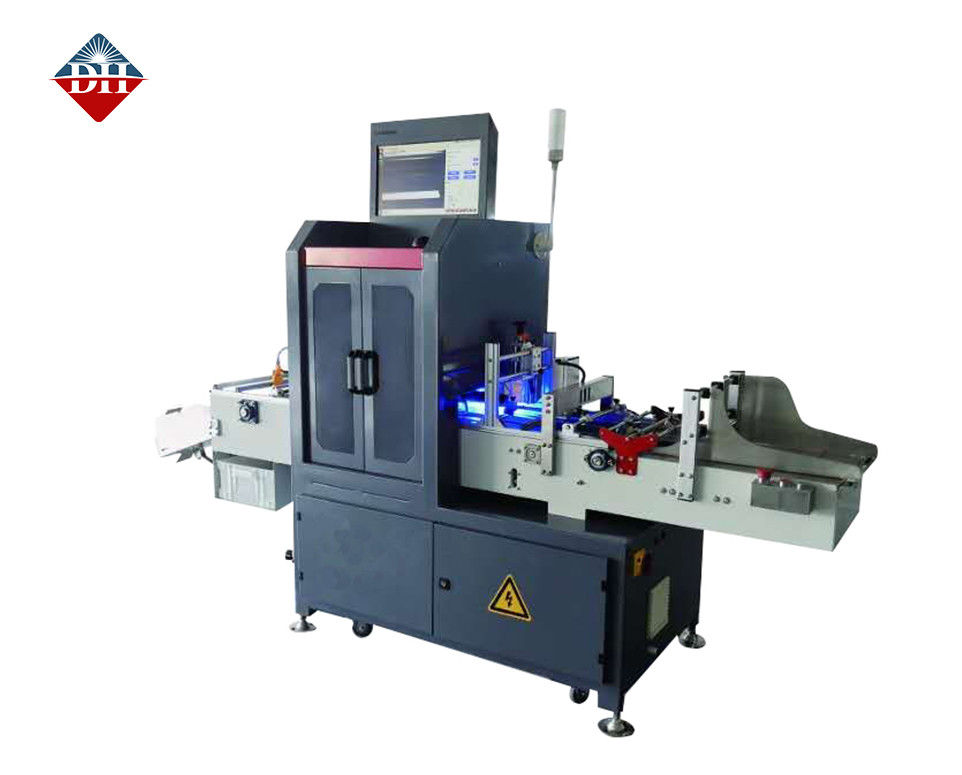

Offline date detection equipment for paper boxes/bags/labels
Keyword
1.Visual inspection and rejection equipment
2.Date detection equipment
Features
It can fully automate the marking process by sorting stacks of plastic bags or paper cartons, detecting duplicate sheets, auxiliary coding, date detection, and rejecting unqualified products, giving full play to the advantages of high-speed coding of coding equipment, and the detection and rejection function is accurate and qualified. Logo coding provides guarantee. It is the best choice for enterprises to improve production efficiency and reduce manual labor.
1. Complete the detection of product production date
2. Automatic paging of sheet products, multiple sheets detection, coding, detection, rejection of unqualified products, collection of qualified products and other functions:
3. The visual system with independent property rights provides high-quality visual configuration according to different products;
4. Can be used with various coding equipment such as inkjet printers, laser machines, and labeling machines:
5. Modular design allows reasonable selection of functional configurations based on user needs:
6. The integrated double-belt structure reduces false contact of the electric eye and improves the convenience of equipment operation. The thickened double-vertical plate design makes the equipment run more stable;
7. Intelligent program control, multi-dimensional warning of abnormal phenomena and accurate judgment of fault causes ensure the safety and stability of production data, thereby ensuring the accuracy of detection;
8. Privilege-level password protection and personnel hierarchical management
9. The machine’s working status and fault reminder function make operation and maintenance more convenient:
10. With equipment remote maintenance and upgrade functions:
11. The system adopts industrial computer and PLC control, with fast response speed;
12. Use world-renowned imported electrical components to ensure the durability and stability of the entire machine.
Specification
| model | A1350 |
| The main function | Check the production date |
| Adaptation | Suitable for coding and detecting plastic bags, labels (paper), cards and other sheet objects |
| Machine body size | 2200*610/350*830+30mm (conveying surface) |
| Equipment appearance material | Stainless steel model/plastic spray model (optional) |
| Size of separated object | Length: 70-300mm Width: 80-350mm Degree: 0.2-2mm (adjustable) |
| Paging type | friction type |
| Paging segment speed | 5-60m/min |
| Motor brand | Jingyan/Purple Light |
| Speed mode | Frequency |
| Coding method | Inkjet printer, laser machine coding |
| Detection method | Camera (check production date) |
| Code detection speed | 10-120m/min |
| Adsorption method | fan adsorption |
| Elimination method | Air blowing/turning plate (optional) |
| Pneumatic parts brand | AirTAC |
| Material receiving method | None/simple collection/automatic collection (optional) |
| control method | Industrial control+PLC |
| Detection speed | Single line characters (within 16 characters): Capacity per minute: 250-350 characters/minute.Single line characters (within 40 characters): Capacity per minute: 150-250 characters/minute.Multi-line characters: Capacity per minute: 150-200 characters/minute |
| power | 900W |
| working pressure | 0.5-0.6Mpa |
| power supply |
220VAC士5% |
Video
