Product Details
Place of Origin: Xi'an City, Shaanxi Province, China
Brand Name: DH
Certification: CE
Model Number: 680
Payment & Shipping Terms
Minimum Order Quantity: 5
Payment Terms: T/T, Western Union
Product Name: |
680 Small Character Inkjet Printer |
Printing Performance: |
1-3lines(7x7matrix),1-5lines (5x5matrix),Maximum Speed=450m/min@5x5 |
Array Configuration: |
5x5,7x5,9x7,12x9,16x11,19x14,24x17,32x22, Chinese 12x12,16x16 |
Maximum Message Length: |
1200 (7×5 Characters) |
Character Height: |
1-12mm |
Printing Distance: |
2-30mm, Optimal Distance: 10mm |
Printing Range: |
2.0mm-20mm |
Operation Interface: |
Chinese/English |
Printable Characters: |
English, Chinese Simplified Chinese, Arabic Numerals, Serial Number, Barcode, Automatic Date, Logo Pattern, Special Font |
Data Interface: |
SD Card |
Information Storage: |
68 Pieces Of Printing Information + 50 Pieces Of Pattern Information |
Type Of Nozzle: |
Round Head Standard Type |
Chassis: |
Stainless Steel |
Protection Level: |
IP65 |
Nozzle: |
60μm Jewel Nozzle, Constant Temperature Nozzle; Optional 50μm* |
Nozzle Throat: |
Super Soft, Length 2M |
Printing Direction: |
360° All-round |
Data Storage Capacity: |
100 Articles |
Ink/Solvent: |
High Performance Ink (500ml),High Performance Solvent (750ml) |
Temperature Humidity: |
0-45°C, Relative Humidity 0-95%, No Condensation |
Electrical Requirements: |
AC100-240V 50/60Hz |
Net Weight: |
17KG |
Physical Dimension: |
410x330x445mm |
Product Name: |
680 Small Character Inkjet Printer |
Printing Performance: |
1-3lines(7x7matrix),1-5lines (5x5matrix),Maximum Speed=450m/min@5x5 |
Array Configuration: |
5x5,7x5,9x7,12x9,16x11,19x14,24x17,32x22, Chinese 12x12,16x16 |
Maximum Message Length: |
1200 (7×5 Characters) |
Character Height: |
1-12mm |
Printing Distance: |
2-30mm, Optimal Distance: 10mm |
Printing Range: |
2.0mm-20mm |
Operation Interface: |
Chinese/English |
Printable Characters: |
English, Chinese Simplified Chinese, Arabic Numerals, Serial Number, Barcode, Automatic Date, Logo Pattern, Special Font |
Data Interface: |
SD Card |
Information Storage: |
68 Pieces Of Printing Information + 50 Pieces Of Pattern Information |
Type Of Nozzle: |
Round Head Standard Type |
Chassis: |
Stainless Steel |
Protection Level: |
IP65 |
Nozzle: |
60μm Jewel Nozzle, Constant Temperature Nozzle; Optional 50μm* |
Nozzle Throat: |
Super Soft, Length 2M |
Printing Direction: |
360° All-round |
Data Storage Capacity: |
100 Articles |
Ink/Solvent: |
High Performance Ink (500ml),High Performance Solvent (750ml) |
Temperature Humidity: |
0-45°C, Relative Humidity 0-95%, No Condensation |
Electrical Requirements: |
AC100-240V 50/60Hz |
Net Weight: |
17KG |
Physical Dimension: |
410x330x445mm |
Rotary Bag Packaging Machine
Features

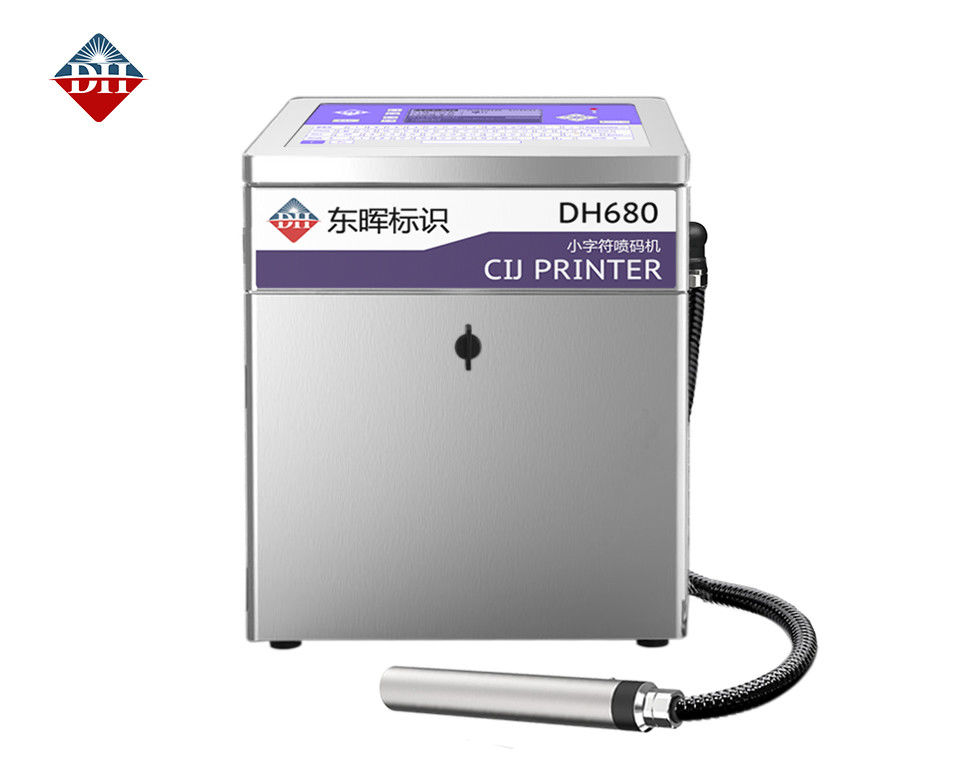

The DH680 continuous inkjet printer can print information on products from different industries and materials. It can print up to 5 lines. It has consistent performance, stability and durability, requiring minimal maintenance.
This inkjet printer is designed to be simple and easy to operate. It can provide various fast drying ink cartridges, achieve clear and accurate inkjet printing on products, and permanently display product information such as batch and date.
DH680 has a sturdy structure and a protection level of IP65. The whole machine adopts a fully sealed design, and the stainless steel structure is sturdy and durable. Can operate reliably in harsh production environments and optimize the efficiency of production lines;
Advantages
| Reliable operation | 1. Turn on and shut down the machine for automatic cleaning with one click, meeting your coding needs at any time. It is equipped with automatic nozzle cleaning function; 2. The nozzle is equipped with an automatic heating module to maintain consistent printer performance in different temperature ranges; 3. The modular design of the nozzle part is strong and durable; the gemstone anti-clogging nozzle increases the stability of the machine and reduces the clogging failure rate; 4. Flexible maintenance mechanism, automatic fault detection and automatic prompts; maintenance early warning function; 5. Ink and solvent are automatically prepared without operator intervention. |
| Simple and convenient operation | 1. The setting and selection of printing content is quick and easy; data changes are simple and convenient, and quick editing can be performed when changing batches or products, without re-typing data or browsing multiple screens; 2. The use of independent plug-in ink cartridges enables completely stain-free and error-free consumable replacement during the printing process. |
| Low cost of use | 1. One box of ink (500ml) can print 70 million characters (for example, two lines of numbers can print about 2 million bottles of mineral water); 2. The ink and filter are designed to be replaced independently to minimize maintenance costs; |
| Consistent performance | 1. Powerful functions that can cope with future needs, printing up to 400 products per minute, and product printing codes are clear and easy to read; 2. Long-lasting inkjet printing effect, providing a variety of quick-drying inks, which can be used for products made of a variety of materials; 3. Consistent printing quality, automatically adapting to changing environmental conditions |
Specification
| Printing performance | 1-3lines(7x7matrix),1-5lines (5x5matrix),Maximum speed=450m/min@5x5 |
| Array configuration | 5x5,7x5,9x7,12x9,16x11,19x14,24x17,32x22, Chinese 12x12,16x16 |
| Maximum message length | 1200 (7×5 characters) |
| character height | 1-12mm |
| Printing distance | 2-30mm, optimal distance: 10mm |
| Printing range | 2.0mm-20mm |
| Operation interface | Chinese/English |
| Printable characters | English, Chinese Simplified Chinese, Arabic numerals, serial number, barcode, automatic date, logo pattern, special font |
| Data interface | SD Card |
| information storage | 68 pieces of printing information + 50 pieces of pattern information |
| Type of nozzle | Round head standard type |
| Chassis | Stainless steel |
| Protection level | IP65 |
| nozzle | 60μm jewel nozzle, constant temperature nozzle; optional 50μm* |
| Nozzle throat | Super soft, length 2M |
| Printing direction | 360° all-round |
| Data storage capacity | 100 articles |
| Ink/Solvent | High performance ink (500ml),High performance solvent (750ml) |
| temperature humidity | 0-45℃, relative humidity 0-95%, no condensation |
| Electrical requirements | AC100-240V 50/60Hz |
| net weight | 17KG |
| physical dimension | 410x330x445mm |
Printing effect
