Product Details
Place of Origin: Xi'an City, Shaanxi Province, China
Brand Name: DH
Certification: CE
Model Number: DH690
Payment & Shipping Terms
Minimum Order Quantity: 5
Payment Terms: Western Union,T/T
Name: |
DH690 Continuous Inkjet Printer |
Spray Printing Dot Matrix: |
41 Dot Matrix, Capable Of Printing 1-6 Lines Of Information |
Nozzle Aperture: |
50 Microns/60 Microns |
System Language: |
Simplified Chinese, Traditional Chinese, English, Portuguese, Türkiye And Other Languages |
Character Height: |
2-12mm, Specific Height Depends On The Selected Font |
Spray Printing Speed: |
The Maximum Single Line Spray Printing Speed For 5 * 5 Dot Matrix Fonts Can Reach 170 Meters/minute |
Print Head Distance: |
5-15mm, Optimal Printing Distance 12mm |
Machine Protection Level: |
IP54 |
Machine Weight: |
18KG |
Product Size: |
330*297*460mm |
Name: |
DH690 Continuous Inkjet Printer |
Spray Printing Dot Matrix: |
41 Dot Matrix, Capable Of Printing 1-6 Lines Of Information |
Nozzle Aperture: |
50 Microns/60 Microns |
System Language: |
Simplified Chinese, Traditional Chinese, English, Portuguese, Türkiye And Other Languages |
Character Height: |
2-12mm, Specific Height Depends On The Selected Font |
Spray Printing Speed: |
The Maximum Single Line Spray Printing Speed For 5 * 5 Dot Matrix Fonts Can Reach 170 Meters/minute |
Print Head Distance: |
5-15mm, Optimal Printing Distance 12mm |
Machine Protection Level: |
IP54 |
Machine Weight: |
18KG |
Product Size: |
330*297*460mm |

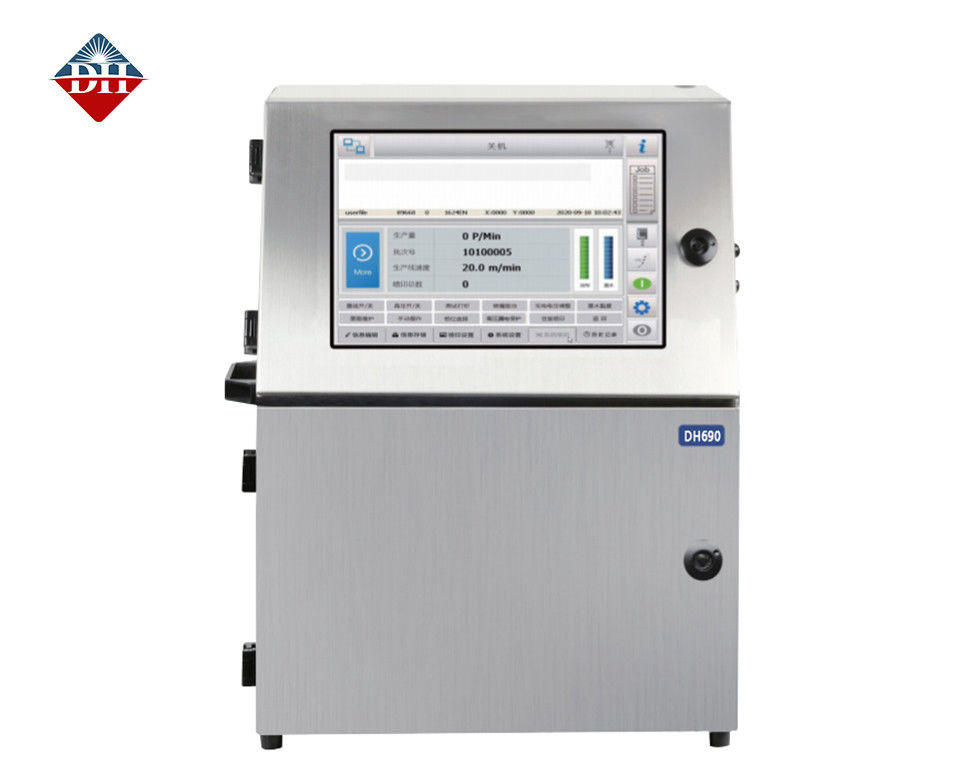

New touch screen CIJ small character inkjet printer DH690
Keyword
1.Small character inkjet printer
2.Touchscreen CIJ inkjet printer
3.Date inkjet printer
4.Fully automatic inkjet printer
5.CIJ continuous inkjet printer
Features
1. High-definition industrial touch screen operation, bid farewell to traditional buttons, making it easier for workers to get started
2. High-speed printing font quality is clear and beautiful
Supports high-speed printing with pigment ink, and uses the intelligent stirring system to achieve stable operation of the printer without clogging the nozzle and beautiful fonts
3. The automatic reverse cleaning system can “one-click flush" the nozzle recovery device
4. Using high-insulating plastic materials and special shielding processing technology, the nozzle is more stable in anti-interference.
5.41 dot matrix model, encoding can reach 1-6 lines, and can print text, encoding, QR code and other information
6.Support multiple languages
Specification
| Number of printing dots | 41 dot matrix, can print 1 to 6 lines of coding | |
| Nozzle hole diameter | 50 micron, 60 micron | |
| Font matrix configuration | ||
| Single row | 5×5, 5×7, 7×9, 9×11, 10×16, 12×16, 16×20, 23×32, 12×12 (Chinese), 16×16 (Chinese) | |
| double row | 5×5, 5×7, 7×9, 9×11, 10×16, 12×16, 12×12 (Chinese), 16×16 (Chinese) | |
| three lines | 5×5, 5×7, 7×9, 9×11, 12×12 (Chinese) | |
| four lines | 5×5, 5×7, 7×9 | |
| five elements | 5×5, 5×7 | |
| Six lines | 5×5 | |
| System Language | Chinese, Traditional Chinese, English, Portuguese, Turkish and other languages | |
| character height | 2-12mm, the specific height depends on the selected font | |
| Spray printing speed | The maximum single-line printing speed of 5×5 fonts can reach 170 m/min. | |
| Spray printing function | Custom font library function, graphic logo, barcode (EAN13, code128), QR code (QR, DM), serial port random number, serial number shift and other mixed editing of numbers, letters and graphics | |
| Print head distance | 5-15mm, optimal printing distance 12mm | |
| Conduit length | Standard 2.5 meters, length can be customized | |
| Code value type | ||
| linear barcode | EAN13,code128 | |
| QR code | 21×21,23×23,25×25,29×29,33×33,37×37,41×41 | |
| Data Matrix | 10×10,12×12,14×14,16×16,18×18,20×20,22×22,24×24, 26×26,32×32,34×34 | |
| Rating value | ||
| Voltage | 110-250V | |
| frequency | 50-60Hz | |
| Data interface | RS232 serial port, Ethernet | |
| Input and output | Support NPN mode | |
| Protection class | IP54 standard | |
| Operating environment | ||
| temperature | 5-45℃ | |
| humidity | 30-90% (non-condensing) | |
| Consumables | ||
| Liquid storage tank capacity | Ink tank 850ml, solvent tank 850ml | |
| protection method | RFID chip accurately controls ink droplet consumption | |
| Standard accessories | Nozzle holder × 1, photoelectric sensor × 1, random tool kit × 1 | |
| Product appearance | ||
| Host weight | 18kg | |
| PRINT HEAD SIZE | 228mm long x 40.6mm wide x 45.3mm high | |
| Equipment dimensions | 330mm long x 297mm wide x 460mm high | |
Printing effect
