Product Details
Place of Origin: Xi'an City, Shaanxi Province, China
Brand Name: DH
Certification: CE/ISO9001
Model Number: DH3003
Document: UV laser machine .pdf
Payment & Shipping Terms
Minimum Order Quantity: 5
Payment Terms: T/T, Western Union
Product Name: |
UV Laser Marking Machine |
Laser Type: |
UV Laser |
Laser Brand: |
Jept |
Output Power: |
3W/5W/10W Optional |
Maximum Linear Marking Speed: |
12000mm/S |
Minimum Line Width: |
0.1mm |
Production Line Speed: |
Up To 120 M/min |
Character Height: |
0.2-100mm |
Focal Length: |
135mm (standard Configuration) |
Wavelength: |
355nm, Can Meet The Working Requirement Of No Less Than 30,000 Hours |
Marking Range: |
Standard 110 * 110mm, Customizable According To Needs |
Number Of Marking Lines: |
Arbitrarily Set The Number Of Lines Within The Effective Marking Range |
Font Type: |
Multiple Options Including Single Line Font, Double Line Font, Dot Matrix Font, Etc |
Marking Content: |
Text, Graphics, Barcodes, QR Codes, Dynamic Serial Numbers, Real-time Clocks, TXT Files RS232 Communication Data, Etc |
Screen Size: |
10 Inch Full-color Touch Screen |
Product Name: |
UV Laser Marking Machine |
Laser Type: |
UV Laser |
Laser Brand: |
Jept |
Output Power: |
3W/5W/10W Optional |
Maximum Linear Marking Speed: |
12000mm/S |
Minimum Line Width: |
0.1mm |
Production Line Speed: |
Up To 120 M/min |
Character Height: |
0.2-100mm |
Focal Length: |
135mm (standard Configuration) |
Wavelength: |
355nm, Can Meet The Working Requirement Of No Less Than 30,000 Hours |
Marking Range: |
Standard 110 * 110mm, Customizable According To Needs |
Number Of Marking Lines: |
Arbitrarily Set The Number Of Lines Within The Effective Marking Range |
Font Type: |
Multiple Options Including Single Line Font, Double Line Font, Dot Matrix Font, Etc |
Marking Content: |
Text, Graphics, Barcodes, QR Codes, Dynamic Serial Numbers, Real-time Clocks, TXT Files RS232 Communication Data, Etc |
Screen Size: |
10 Inch Full-color Touch Screen |
Donghui UV Laser Marking Machine Fully Automatic Flight UV Laser Marking Machine
UV Laser Marking Machine
Describe
Flight ultraviolet laser marking machine, fully automatic industrial equipment

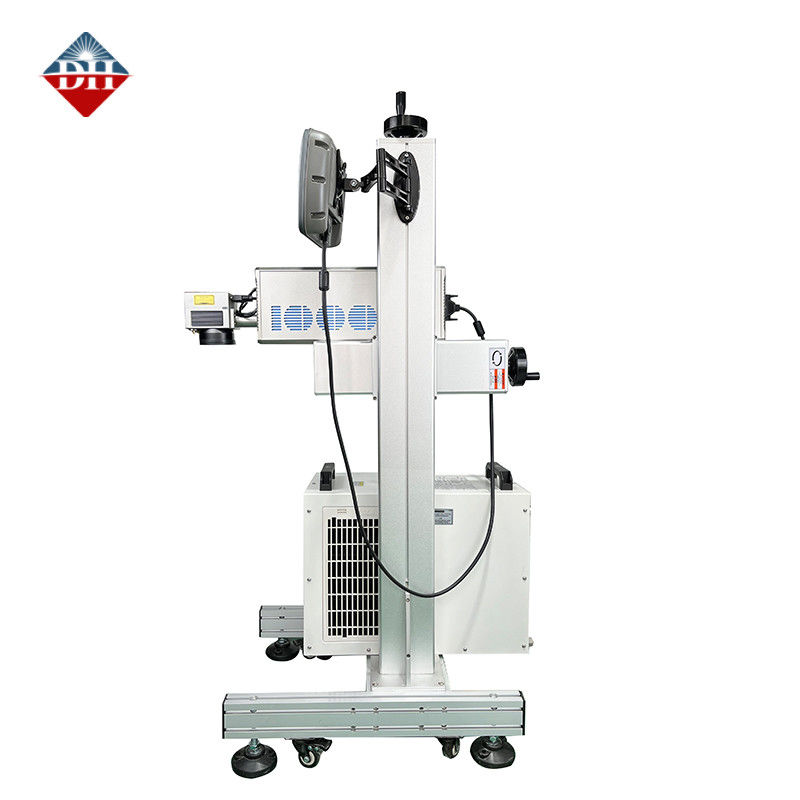

UV laser marking machine, consisting of a 10.2-inch display screen, laser, water tank, all aluminum three-dimensional bracket, moving roller, fixed base, etc. Using consumables free, free of cleaning and maintenance, engraving processing is not possible, fast, fully automated, printing results are clear and beautiful, factory direct delivery, support customization. Suitable for a wide range of industries, including the food industry, pharmaceutical industry, building materials industry, etc. There are multiple application methods that can be used in conjunction with production lines. A single device is sufficient, with automatic sensing and coding; Can be used in conjunction with high-speed filling production lines, and can be used in conjunction with various packaging machines, such as film rolling packaging machines, box filling machines, labeling machines, and box sealing machines; Can be used in conjunction with a pagination machine, for flat products such as labels, bags, boxes, cards, etc., to quickly paginate and label; It can be used in conjunction with a conveyor, whether it is flat or with curved products installed; Can be used at designated points, with marking at designated points and a foot switch for use.
Product features
|
Application of UV laser |
Application of UV laser:The mainly apply to finely processed industry: Marking of outer package for cosmetic, medical, food, sort of polymer material High-precision engraved for flexiable PCB plate,LCD glass, coated metal,rubber,electroniccomponent, gift,communication equipment, building materials. |
| UV laser source |
Integration design for whole laser generator,combination of optical path and power controller system,compact structure and integration easier
Adopt laser diode as pump source of laser generator,can continuously trouble-free running up to 30,000 hours
|
| Optical path and galvanometer system | Galvanometersystem:Adopted digital galvanometer system with high-speed,high- precision to make sure high-effeciency running,enhance anti-interference signal ability |
Equipment parameters
| Donghui DH3003 UV Laser Marking Machine | |
| Laser type | UV laser |
| wavelength | 355nm, can meet the working requirement of no less than 30,000 hours |
| Output Power | 3W/5W/10W optional |
| focal length | 135mm (standard configuration) |
| Maximum linear marking speed | 12000mm/S |
| Laser brand | Jept |
| Marking parameters | |
| Marking range | Standard 110 * 110mm, customizable according to needs |
| Print Rows | Arbitrarily set the number of lines within the effective marking range |
| Minimum line width | 0.1mm |
| Production line speed | up to 120 m/min |
| character height | 0.2-100mm |
| font | Multiple options including single line font, double line font, dot matrix font, etc |
| Marking content | Text, graphics, barcodes, QR codes, dynamic serial numbers, real-time clocks, TXT files RS232 communication data, etc |
| Operation interface | |
| monitor | 10-inch industrial touch screen |
| operating language | Chinese, English (other languages can be supported) |
| operating system | Donghui |
| input device | Manual touch screen, U disk, network port |
| Environmental requirements | |
| Protection level |
The overall protection level of the controller can reach IP55, and the surface can reach IP65 protection level. Waterable shower |
| cool down | water cooling |
| ambient temperature | 10-40℃ |
| humidity | Relative humidity 10%-90%RH non-condensing |
| Power supply | 220V, 1KVA |
