Product Details
Place of Origin: Xi'an City, Shaanxi Province, China
Brand Name: DH
Certification: CE/ISO9001
Model Number: DH3020
Document: fiber laser marking machine...e .pdf
Payment & Shipping Terms
Minimum Order Quantity: 5
Payment Terms: T/T, Western Union
Name: |
Fiber Flying Laser Marking Machine |
Machine Material: |
Body: Sandblasted And Oxidized All-aluminum Structure |
Laser: |
Fiber Laser Th Generator Has A Service Life Of More Than 100,000 Hours |
Laser Wavelength: |
1064nm |
Actual Output Power: |
≥21W ≥32W ≥52W |
Marking Speed: |
≤12000mm/s |
Master Control: |
10.2-inch Touch Controller |
Cooling System: |
Normal Temperature Air Cooling |
Focusing Lens: |
Focal Length 170mm |
Minimum Line Width: |
0.0012mm |
Repeatability: |
0.003mm |
Marking Range: |
110mm×110mm (optional) |
Targeting: |
Red Light Focus |
Number Of Lines Of Characters To Be Engraved: |
Any Row Within The Marking Range |
Th Production Line Speed: |
0~120m/min (depending On The Material) |
Name: |
Fiber Flying Laser Marking Machine |
Machine Material: |
Body: Sandblasted And Oxidized All-aluminum Structure |
Laser: |
Fiber Laser Th Generator Has A Service Life Of More Than 100,000 Hours |
Laser Wavelength: |
1064nm |
Actual Output Power: |
≥21W ≥32W ≥52W |
Marking Speed: |
≤12000mm/s |
Master Control: |
10.2-inch Touch Controller |
Cooling System: |
Normal Temperature Air Cooling |
Focusing Lens: |
Focal Length 170mm |
Minimum Line Width: |
0.0012mm |
Repeatability: |
0.003mm |
Marking Range: |
110mm×110mm (optional) |
Targeting: |
Red Light Focus |
Number Of Lines Of Characters To Be Engraved: |
Any Row Within The Marking Range |
Th Production Line Speed: |
0~120m/min (depending On The Material) |

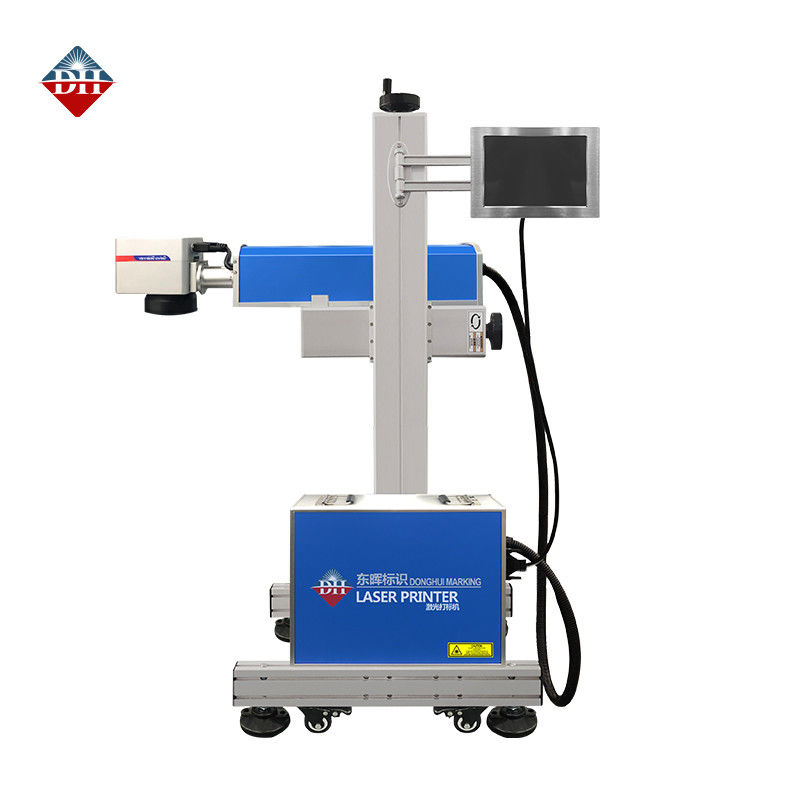

Fiber Flying Laser Marking Machine,Date carving on the bottom of the can
Keyword
1. Fiber flying laser marking machine
2. Pipe laser marking machine
3. Metal laser marking machine
4. Assembly line laser marking machine
5. Optical fiber online laser marking machine
6. Fiber laser marking machine
Features
Our company's fiber laser marking machine mainly uses high-quality lasers, German high-performance galvanometer scanning systems, and control software developed by our company. It has fast speed, stable performance, good laser mode, long service life, and can work continuously for up to 100,000 hours. The electro-optical conversion efficiency is high and the power consumption of the whole machine is small. The system is simple to operate and flexible and convenient to change. Full Chinese interface, compatible with files output by AUTOCAD, CORELDRAW, PHOTOSHOP, CAXA and other software, can be marked with barcodes, QR codes, graphic text, etc., supports PLT, PCX, DXF, BMP and other file formats, directly use SHX , TTF font library. The system can automatically code and print serial numbers, batch numbers, dates, etc. Applicable to all metal materials and PE materials.
Specification
| Project | Product parameter table | F-20W | F-30W | F-50W |
|
Overall machine characteristics |
Machine material | Body: Sandblasted and oxidized all-aluminum structure | ||
| laser | Fiber laser Th generator has a service life of more than 100,000 hours | |||
| Laser wavelength | 1064nm | |||
| Actual output power | ≥21W | ≥32W | ≥52W | |
| Marking speed | ≤12000mm/s | |||
| master control | 10.2-inch touch controller | |||
| cooling system | Normal temperature air cooling | |||
|
Coding parameters |
focusing lens | Focal length 170mm | ||
| Minimum line width | 0.0012mm | |||
| Repeatability | 0.003mm | |||
| Marking range | 110mm×110mm (optional) | |||
| Targeting | Red light focus | |||
| Number of lines of characters to be engraved | Any row within the marking range | |||
| Th production line speed | 0~120m/min (depending on the material) | |||
|
Software introduction |
multi-lingual | English, French, Spanish, German, Chinese, Russian, Arabic, etc. | ||
| Administrative permissions | Multi-user management permissions | |||
| operating system | Linux system | |||
| Coding mode | Three printing modes: static, simulation and encoder | |||
| reserved signal | Start printing, printing status, printing completed, fault alarm | |||
| Missed dose monitoring | Provides overspeed alarm function due to false triggering due to material reflection | |||
| go to intersection | Automatically remove intersection points and avoid key points of intersection | |||
| Coding software | Can realize single and double machine code sending | |||
|
Support type |
font | Chinese, English, digital, traditional and other standard fonts | ||
| file format | BMP/DXF/HPGL/JPEG/PLT | |||
| barcode | CODE39, CODE128, CODE126, QR, Zhenzhi code (optional) | |||
|
Machine parameter |
power supply | 220V/50HZ | ||
| power consumption | 800W | |||
| environment | Require | External temperature 0℃-45℃; Humidity ≤95; Non-condensing; No vibration | ||
Printing effect
