Product Details
Place of Origin: Xi'an City, Shaanxi Province, China
Brand Name: DH
Certification: CE
Model Number: PRM-RBT
Payment & Shipping Terms
Minimum Order Quantity: 1
Payment Terms: T/T, Western Union
Name: |
Fully Automatic Big Bag Packaging And Palletizing |
Machine Type: |
PRM-RBT |
Package Weight: |
15-50kg |
Packaging Speed: |
500-800 Bags/hour (single Gripper) |
Stacking Type: |
According To Customer Requirements |
Power Supply: |
AC 380V/50HZ/3 Phase |
Air Source Requirements: |
0.5-0.7Mpa |
Name: |
Fully Automatic Big Bag Packaging And Palletizing |
Machine Type: |
PRM-RBT |
Package Weight: |
15-50kg |
Packaging Speed: |
500-800 Bags/hour (single Gripper) |
Stacking Type: |
According To Customer Requirements |
Power Supply: |
AC 380V/50HZ/3 Phase |
Air Source Requirements: |
0.5-0.7Mpa |

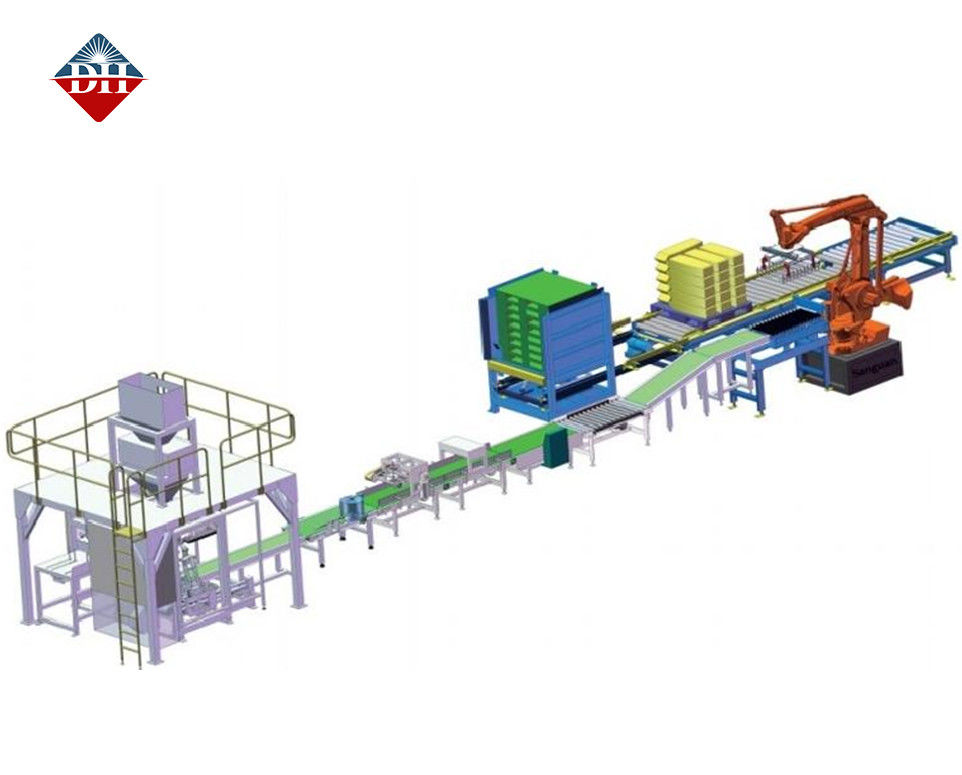

Fully Automatic Big Bag Packaging And Palletizing
Keyword
1. Fully automatic packaging and palletizing machine
2. Fully automatic feed packaging production line
3. Woven bag palletizer
4. Fertilizer automatic packaging and palletizing machine
Application scope
PRM-ZD fully automatic large bag packaging machine is suitable for automatic packaging of materials with good fluidity such as feed, fertilizer, food, chemical products, plastic particles, etc.
Features
1. The whole machine has a reasonable layout, saves space, and is easy to install;
2. The unloading port and other places where materials are easy to accumulate adopt anti-adhesion design to facilitate daily cleaning and maintenance;
3. Fully consider dust removal design in filling, sealing and other aspects to improve the cleanliness of the production workshop environment;
4. The size of the bag supply warehouse is adjustable to adapt to different bag sizes;
5. The unloading port is equipped with an automatic detection function, and the material will not be filled if the packaging bag mouth is not opened;
6. Using Siemens PLC and human-machine interface, the program is stable, reliable and easy to operate.
7. Equipped with the automatic identification function of defective packaging bags, which can automatically eliminate defective packaging bags to ensure the continuity of production.
Specification
| machine type | PRM-RBT |
| Bag weight range | 15-50kg |
| Palletizing speed | 500-800 bags/hour (single gripper) |
| Stacking type | According to customer requirements |
| power supply | AC 380V/50HZ/3 phase |
| Air source requirements | 0.5-0.7Mpa |
