Product Details
Place of Origin: Xi'an City, Shaanxi Province, China
Brand Name: DH
Certification: CE
Model Number: PRM-V
Payment & Shipping Terms
Minimum Order Quantity: 1
Payment Terms: T/T, Western Union
Name: |
Fully Automatic Vertical Packaging Machine |
Machine Type: |
PRM-V500 PRM-V600 PRM-V800 PRM-V1100 |
Package Weight: |
50-1000g 100-2000g 500-5000g 2-25kg |
Packaging Speed: |
25-55bags/min 25-55bags/min 25-40bags/min 5-25bags/min |
Bag Width Range: |
100-230MM 100-300MM 120-370MM 300-530MM |
Bag Length Range: |
100-300MM 100-450MM 200-450MM 400-900MM |
Film Width Range: |
200-500MM 200-630MM 240-780MM 640-1100MM |
Power Supply: |
AC 380V/50HZ/3phase |
Air Source Requirements: |
0.5-0.7Mpa |
Name: |
Fully Automatic Vertical Packaging Machine |
Machine Type: |
PRM-V500 PRM-V600 PRM-V800 PRM-V1100 |
Package Weight: |
50-1000g 100-2000g 500-5000g 2-25kg |
Packaging Speed: |
25-55bags/min 25-55bags/min 25-40bags/min 5-25bags/min |
Bag Width Range: |
100-230MM 100-300MM 120-370MM 300-530MM |
Bag Length Range: |
100-300MM 100-450MM 200-450MM 400-900MM |
Film Width Range: |
200-500MM 200-630MM 240-780MM 640-1100MM |
Power Supply: |
AC 380V/50HZ/3phase |
Air Source Requirements: |
0.5-0.7Mpa |

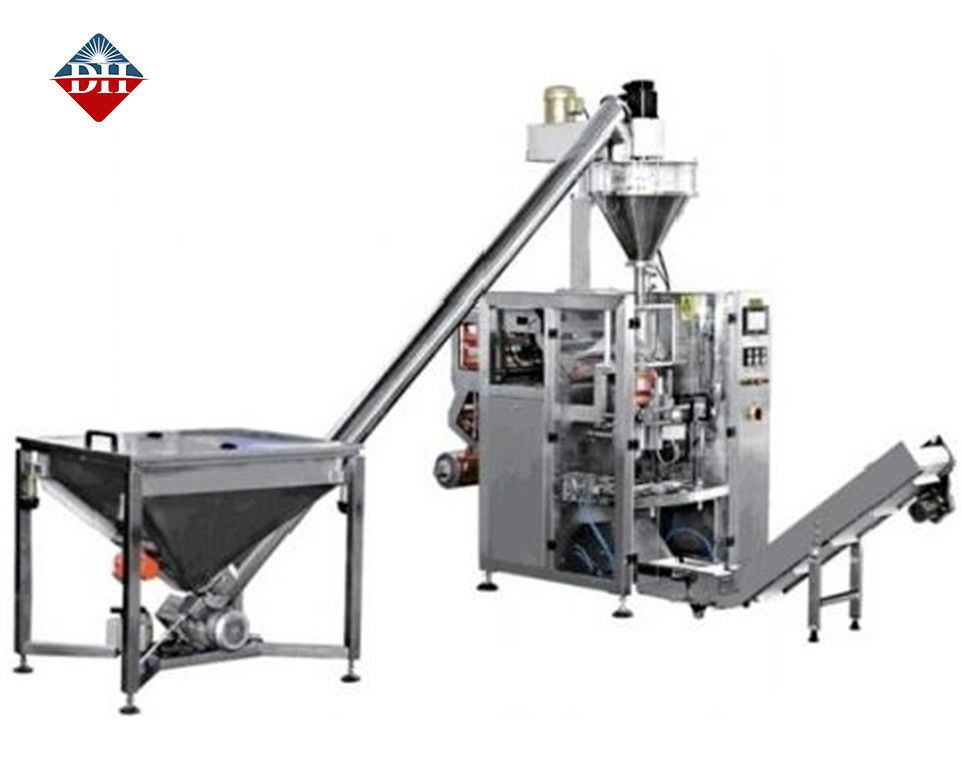

Fully Automatic Vertical Packaging Machine
Keyword
1. Fully automatic vertical packaging machine
2. Vertical roll film packaging machine
3. Sauce packaging machine
4. Fully automatic packaging machine
Application scope
The PRM-V series fully automatic vertical packaging unit is mainly suitable for automated packaging of seeds, pesticides, food, grains, flour and other fluid materials.
Features
1. The PRM-V series fully automatic vertical packaging unit can be connected to different weighing equipment according to material characteristics for automatic packaging of granular, powdery and liquid materials;
2. This unit can realize fully automatic weighing, bag making, filling, coding, sealing, punching and finished product output;
3. Equipped with PLC programming control system, servo power system and pneumatic execution system to realize the operation control of the entire packaging process through human-machine interface;
4. The setting and modification of packaging parameters can be completed through touch screen operation. The system can memorize and store 10 different product packaging parameters, which can be recalled at any time when changing product packaging;
5. This unit can automatically produce pillow bags, gusset bags and bags;
6. Reasonable structure and configuration ensure that the equipment can operate normally in a low-temperature environment, and low-temperature protection design can be carried out according to customer needs.
Specification
| machine type | PRM-V500 | PRM-V600 | PRM-V800 | PRM-V1100 |
| Package weight | 50-1000g | 100-2000g | 500-5000g | 2-25kg |
| packaging speed | 25-55bags/min | 25-55bags/min | 25-40bags/min | 5-25bags/min |
| Bag width range | 100-230MM | 100-300MM | 120-370MM | 300-530MM |
| Bag length range | 100-300MM | 100-450MM | 200-450MM | 400-900MM |
| Film width range | 200-500MM | 200-630MM | 240-780MM | 640-1100MM |
| power supply | AC 380V/50HZ/3phase | |||
| Air source requirements | 0.5-0.7Mpa | |||
