Product Details
Place of Origin: Xi'an City, Shaanxi Province, China
Brand Name: DH
Certification: CE
Model Number: PGD
Payment & Shipping Terms
Minimum Order Quantity: 1
Payment Terms: T/T, Western Union
Name: |
Rotary Bag Packaging Machine |
Machine Type: |
PGD6-200 PGD8-240 PGD8-300 PGD6-350 |
Number Of Workstations: |
6 8 8 6 |
Bag Width Range: |
80-200MM 80-240MM 20-300MM 140-350MM |
Bag Length Range: |
100-350MM 100-400MM 150-450MM 200-470MM |
Zipper: |
Not Support Support Support Not Support |
Packaging Speed: |
20-50 Bags/min 20-50 Bags/min 20-40 Bags/min 20-40 Bags/min |
Package Weight: |
50-2000g 50-2500g 100-5000g 100-5000g |
Power Supply: |
AC 380V/50HZ/3 Phase |
Air Source Requirements: |
0.5-0.7Mpa |
Name: |
Rotary Bag Packaging Machine |
Machine Type: |
PGD6-200 PGD8-240 PGD8-300 PGD6-350 |
Number Of Workstations: |
6 8 8 6 |
Bag Width Range: |
80-200MM 80-240MM 20-300MM 140-350MM |
Bag Length Range: |
100-350MM 100-400MM 150-450MM 200-470MM |
Zipper: |
Not Support Support Support Not Support |
Packaging Speed: |
20-50 Bags/min 20-50 Bags/min 20-40 Bags/min 20-40 Bags/min |
Package Weight: |
50-2000g 50-2500g 100-5000g 100-5000g |
Power Supply: |
AC 380V/50HZ/3 Phase |
Air Source Requirements: |
0.5-0.7Mpa |
Rotary Bag Packaging Machine
Keyword
1. Bag packaging machine
2. Rotary bag packaging machine
3. Fully automatic packaging machine
4. Fully automatic bag packaging machine
5. Rotary packaging machine
Application scope

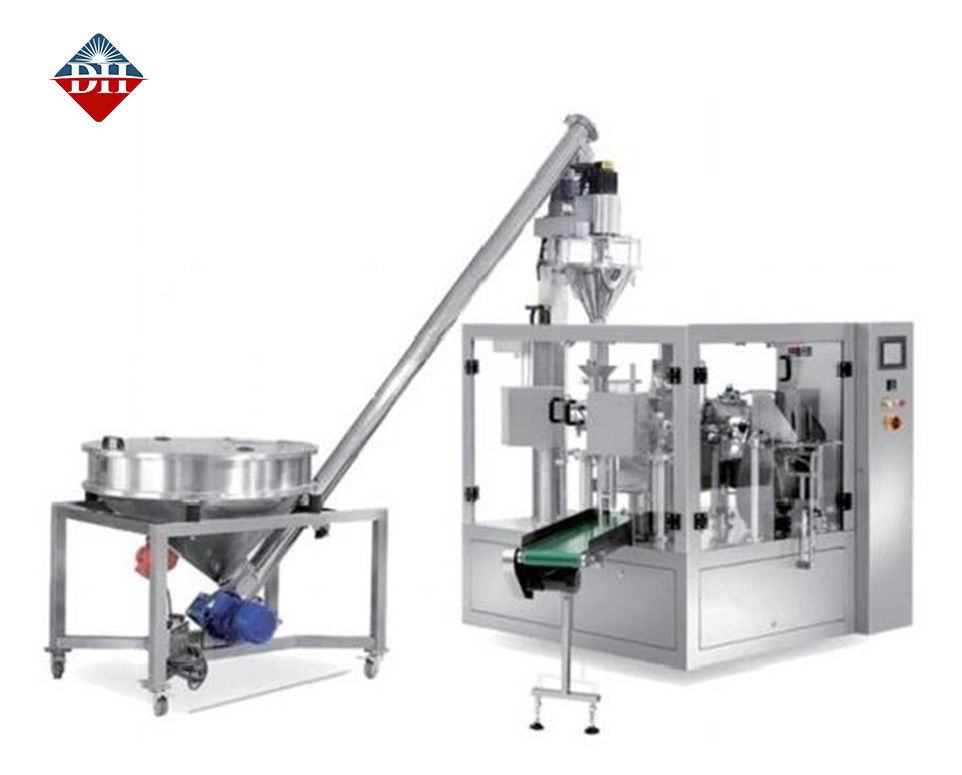

The PGD series fully automatic rotary bag-feeding packaging unit is mainly suitable for automated packaging of prefabricated flat bags, stand-up bags and zipper bags. With different weighing machines, the unit can be used in food, miscellaneous grains, sugar, flour and cassava flour industries.
Features
1. The entire machine frame is made of SUS304 food-grade stainless steel, which has upgraded aesthetics and is easy to clean and maintain;
2. The unit can realize automatic bag taking, bag loading, coding, weighing, bag opening, filling, heat sealing and finished product output; it can be connected with weight detectors, metal detectors and automatic cartoning equipment to form an automated packaging line;
3. The entire unit is equipped with LCD touch screen and PLC control system to improve production efficiency and save labor costs;
4. Supports one-click bag width adjustment to suit packaging needs of different specifications and make production more efficient;
5. The upgraded bag clamping mechanism is adopted, which can meet the packaging weight of up to 5kg.
Specification
| machine type | PGD6-200 | PGD8-240 | PGD8-300 | PGD6-350 |
| Number of workstations | 6 | 8 | 8 | 6 |
| Bag width range | 80-200MM | 80-240MM | 20-300MM | 140-350MM |
| Bag length range | 100-350MM | 100-400MM | 150-450MM | 200-470MM |
| zipper | not support | support | support | not support |
| packaging speed | 20-50 bags/min | 20-50 bags/min | 20-40 bags/min | 20-40 bags/min |
| Package weight | 50-2000g | 50-2500g | 100-5000g | 100-5000g |
| power supply | AC 380V/50HZ/3 phase | AC 380V/50HZ/3 phase | AC 380V/50HZ/3 phase | AC 380V/50HZ/3 phase |
| Air source requirements | 0.5-0.7Mpa | 0.5-0.7Mpa | 0.5-0.7Mpa | 0.5-0.7Mpa |
