Product Details
Place of Origin: Xi'an City, Shaanxi Province, China
Brand Name: DH
Certification: CE/ISO9001
Model Number: DH3020
Payment & Shipping Terms
Minimum Order Quantity: 5
Payment Terms: T/T, Western Union
Product Name: |
Handheld Laser Marking Machine |
Machine Material: |
Body: Sandblasted And Oxidized All-aluminum Structure |
Laser Lifetime: |
Fiber Laser Th Generator Has A Service Life Of More Than 100,000 Hours |
Laser Wavelength: |
1064nm |
Actual Output Power: |
≥20W ≥30W |
Marking Speed: |
≤12000mm/s |
Master Control: |
8-inch Touch Controller |
Cooling System: |
Normal Temperature Air Cooling |
Focusing Lens: |
Focal Length 170mm |
Minimum Line Width: |
0.0012mm |
Repeatability: |
0.003mm |
Targeting: |
Red Light Indication |
Marking Range: |
75mm×75mm Or 120×75mm (or Customized) |
Number Of Lines Of Characters To Be Engraved: |
Any Row Within The Marking Range |
Th Production Line Speed: |
0~130m/min (depending On The Material) |
Product Name: |
Handheld Laser Marking Machine |
Machine Material: |
Body: Sandblasted And Oxidized All-aluminum Structure |
Laser Lifetime: |
Fiber Laser Th Generator Has A Service Life Of More Than 100,000 Hours |
Laser Wavelength: |
1064nm |
Actual Output Power: |
≥20W ≥30W |
Marking Speed: |
≤12000mm/s |
Master Control: |
8-inch Touch Controller |
Cooling System: |
Normal Temperature Air Cooling |
Focusing Lens: |
Focal Length 170mm |
Minimum Line Width: |
0.0012mm |
Repeatability: |
0.003mm |
Targeting: |
Red Light Indication |
Marking Range: |
75mm×75mm Or 120×75mm (or Customized) |
Number Of Lines Of Characters To Be Engraved: |
Any Row Within The Marking Range |
Th Production Line Speed: |
0~130m/min (depending On The Material) |

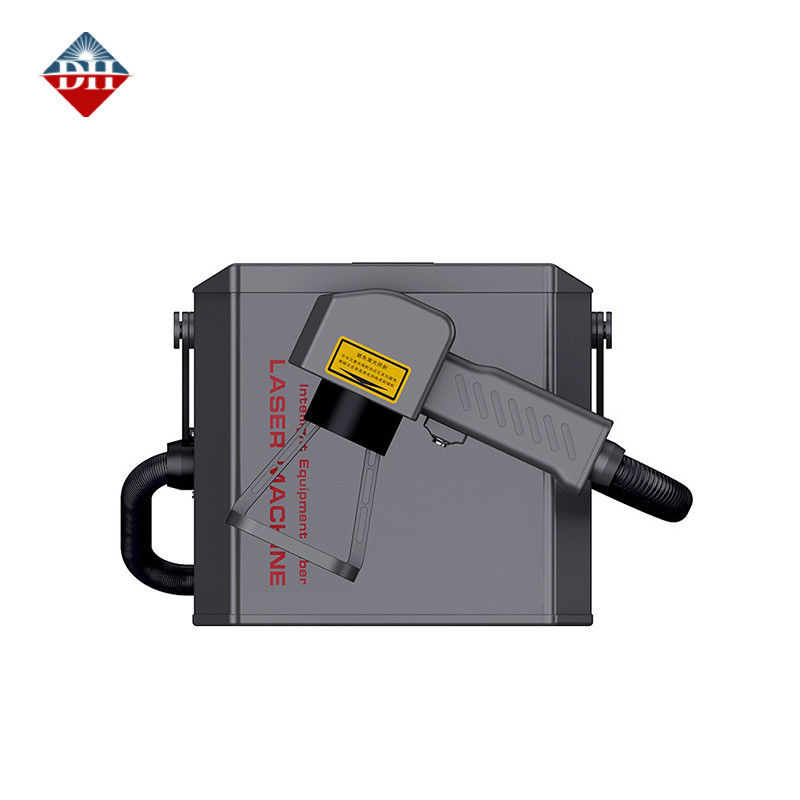

Handheld laser marking machine
Describe
A portable handheld fiber laser marking machine with intelligent touch screen humanized system, diversified marking content, simple operation, compact appearance, breaking away from traditional socket style, truly achieving carving anytime and anywhere, suitable for automotive parts such as metal, plastic, rubber, spray materials, electroplating materials, sanitary ware, communication products, electronic components, plastic buttons, integrated circuits, lighting appliances and other industries.
Features
Built-in battery design
24V lithium battery (optional), 12AH large-capacity battery can maintain operation for 12-16 hours under normal use.
Portable design, one machine for multiple uses
It adopts portable + desktop (optional) + flight design (optional) and is suitable for a variety of occasions.
Configure linux system
Using 8-core processor, configuration with high security level
The performance is stable, the response speed is fast, and it is not prone to poisoning and downtime.
All-aluminum body, precise and compact
The whole machine weighs 8.25kg, and its marking head is only 1.25kg.
Ergonomically designed, comfortable to hold and easy to operate.
Specification
| project | Product parameter table | DH3020F | DH3030F | |
|
Overall machine characteristics |
Machine material | Sandblasted anodized all-aluminum construction | ||
| laser | Fiber laser Th generator has a service life of more than 100,000 hours | |||
| Laser wavelength | 1064nm | |||
| Actual output power | ≥20W | ≥30W | ||
| Marking speed | ≤12000mm/s | |||
| master control | 8-inch touch controller | |||
| cooling system | Normal temperature air cooling | |||
| Minimum line width | 0.0012mm | |||
| Repeatability | 0.003mm | |||
| Marking range | 75mm×75mm or 120×75mm (or customized) | |||
| Targeting | red light indication | |||
| Number of lines of characters to be engraved | Any row within the marking range | |||
| Th production line speed | 0~130m/min (depending on the material) | |||
|
Software introduction |
multi-lingual | English, French, Spanish, German, Chinese, Russian, Arabic, etc. | ||
| Administrative permissions | Multi-user management permissions | |||
| operating system | Linux system | |||
| Coding mode | Three printing modes: static, simulation and encoder | |||
| reserved signal | Start printing, printing status, printing completed, fault alarm | |||
| Data protection | With power-down data protection function | |||
| Missed dose monitoring | Provides overspeed alarm function due to false triggering due to material reflection | |||
| go to intersection | Automatically remove intersection points and avoid key points of intersection | |||
| Coding software | Can realize single and double machine code sending | |||
|
Support type |
font | Chinese, English, digital, traditional and other standard fonts | ||
| file format | BMP/DXF/HPGL/JPEG/PLT | |||
| barcode | CODE39, CODE128, CODE126, QR, Zhenzhi code (optional) | |||
|
Machine parameter |
power supply | Standard configuration: external power supply 220V/50HZ | ||
| power consumption | 200W | |||
| Machine net weight | Chassis: 7kg, machine head: 1.25kg, total weight after packaging: 8.25kg | |||
| Dimensions | Chassis: 270*155*245, machine head: 240*100*230mm, packaging box: 470*410*360 mm | |||
| Battery life | Optional: Built-in battery: 12000mA, normal use time 12-16 hours | |||
| environment | Require | External temperature 0℃-45℃; Humidity ≤95; Non-condensing; No vibration | ||
Printing effect
