Product Details
Place of Origin: Xi'an City, Shaanxi Province, China
Brand Name: DH
Certification: CE/ISO9001
Model Number: DH3020
Payment & Shipping Terms
Minimum Order Quantity: 5
Payment Terms: T/T, Western Union
Product Name: |
Handheld Laser Marking Machine |
Machine Material: |
Body: Sandblasted And Oxidized All-aluminum Structure |
Laser Lifetime: |
Fiber Laser The Generator Has A Service Life Of More Than 100,000 Hours |
Laser Wavelength: |
1064nm |
Actual Output Power: |
≥20W ≥30W |
Marking Speed: |
≤12000mm/s |
Master Control: |
8-inch Touch Controller |
Focusing Lens: |
Focal Length 170mm |
Minimum Line Width: |
0.0012mm |
Repeatability: |
0.003mm |
Cooling System: |
Normal Temperature Air Cooling |
Marking Range: |
75mm×75mm Or 120×75mm (or Customized) |
Targeting: |
Red Light Indication |
Th Production Line Speed: |
0~130m/min (depending On The Material) |
Number Of Lines Of Characters To Be Engraved: |
Any Row Within The Marking Range |
Product Name: |
Handheld Laser Marking Machine |
Machine Material: |
Body: Sandblasted And Oxidized All-aluminum Structure |
Laser Lifetime: |
Fiber Laser The Generator Has A Service Life Of More Than 100,000 Hours |
Laser Wavelength: |
1064nm |
Actual Output Power: |
≥20W ≥30W |
Marking Speed: |
≤12000mm/s |
Master Control: |
8-inch Touch Controller |
Focusing Lens: |
Focal Length 170mm |
Minimum Line Width: |
0.0012mm |
Repeatability: |
0.003mm |
Cooling System: |
Normal Temperature Air Cooling |
Marking Range: |
75mm×75mm Or 120×75mm (or Customized) |
Targeting: |
Red Light Indication |
Th Production Line Speed: |
0~130m/min (depending On The Material) |
Number Of Lines Of Characters To Be Engraved: |
Any Row Within The Marking Range |
Describe

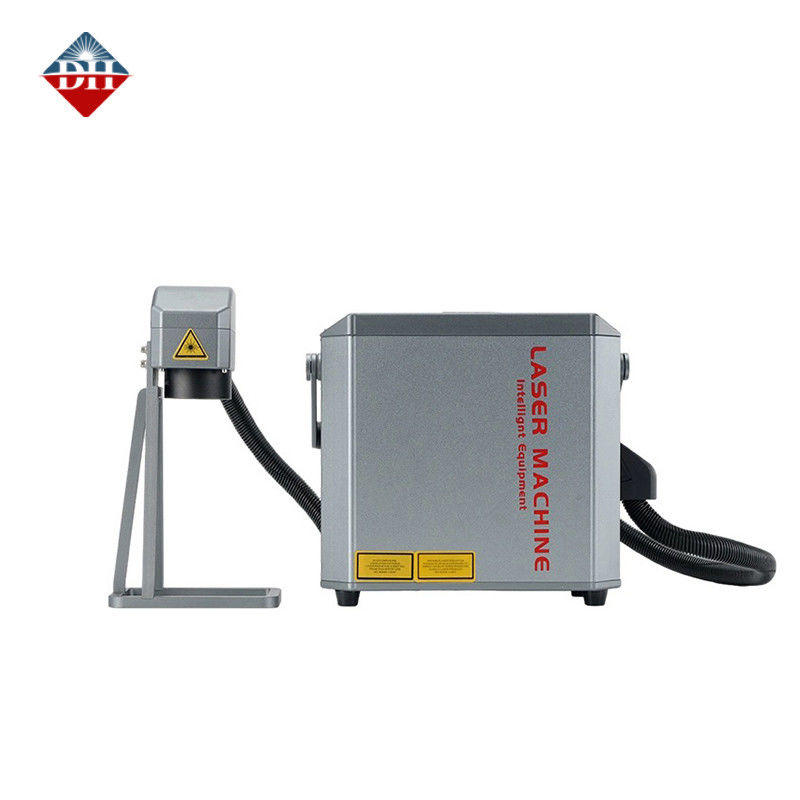

A portable handheld fiber laser marking machine with intelligent touch screen humanized system, diversified marking content, simple operation, compact appearance, breaking away from traditional socket style, truly achieving carving anytime and anywhere, suitable for automotive parts such as metal, plastic, rubber, spray materials, electroplating materials, sanitary ware, communication products, electronic components, plastic buttons, integrated circuits, lighting appliances and other industries.
Features
1. Handheld laser marking machine, specially designed to solve various marking difficulties. Advanced laser technology is used to achieve fast focusing and high-precision marking. It adopts a highly integrated design, the body is compact and lightweight, and the battery is detachable, allowing unlimited battery life and improving work efficiency. The handheld laser marking machine has a wider range of uses and higher flexibility, and can meet the daily needs of customers.
2. Price advantage, quality assurance: provide high quality at a reasonable price.
3. Infrared positioning, precise marking: using advanced laser technology to achieve rapid focus adjustment and high-precision marking.
4. Lightweight design, flexible use: compact and lightweight, the whole machine weighs only 6.8KG; handheld operation, flexible operation; compatible with multi-brand hardware; flexible to adapt to various scenarios.
5. One-button touch screen, simple operation: 8-inch large screen, one-button touch, simple and smooth operation, easy to use.
6. Power supply design: 1. 220V plug-in version: plug and play, convenient and fast.
7. Lithium battery version: battery removable design.
Specification
| laser | fiber-optic laser |
| Output Power | 8W, 20W, 25W, 30W |
| Marking range | 70*70mm, 100*100mm (optional) |
| Deflection galvanometer | High-precision two-dimensional scanning system |
| Laser wavelength | 1064nm |
| focusing lens | 130mm |
| Marking speed | ≤7000mm/s |
| master control | Integrated motherboard, 8-inch capacitor fully laminated screen |
| operating system | LINUX system |
| Marking line type | Dot matrix and vector all-in-one machine |
| Line width | 0.03mm |
| Repeatability | 0.01mm |
| Targeting | Red light positioning focus |
| Print the number of character lines | Any number of rows within the valid range |
| printing speed | 800 characters (related to product material and printing content) |
| file format | BMP, DXF, HPGL, JPEG, PLT |
| barcode | CODE39, CODE128, CODE126, QR |
| power supply | 110V/220V AC, lithium battery (216Wh) |
| Machine power consumption | 145-250W |
| Whole machine operating temperature | 0-40° |
| Total Weight | 6-6.8kg |
